PJNC系列 净化室用节流阀

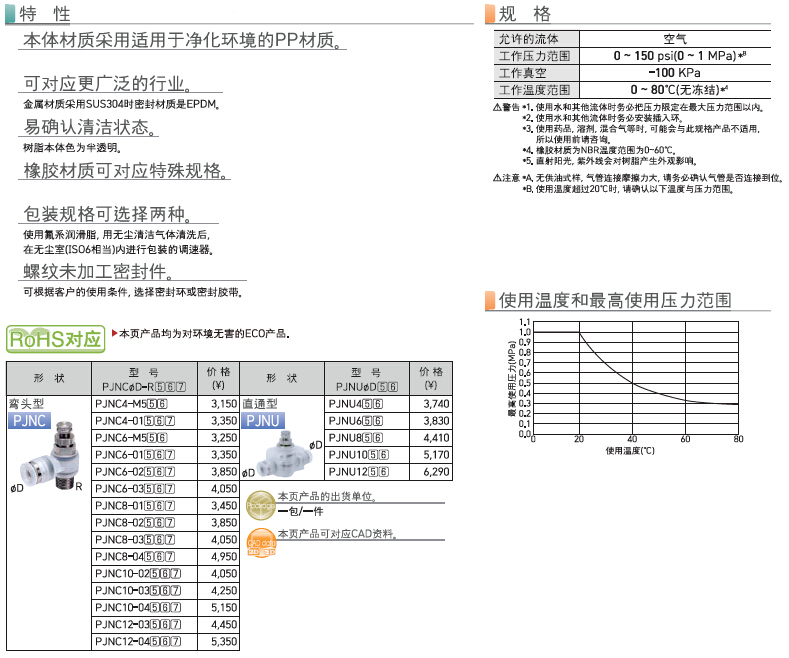

本体材质采用适用于净化环境的PP材质；可对应更广泛的行业；易确认清洁状态。
点击订货号查看价格，了解更多请登录，享受优惠请拨打4008-824-824
- 碧铄科(PISCO)
- -+
| 订货号 | 型号 | 一般 发货日 | 类型 | 工作压力范围 | 管子直径 | 螺纹 | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|
| 114351 | PJNC4-M5 | 净化室用 | 0~150psi(0~1MPa) | 4 | 公制螺纹 | M5x0.8 | |
| 114352 | PJNC4-01 | 净化室用 | 0~150psi(0~1MPa) | 4 | 锥管螺纹 | R1/8 | |
| 114353 | PJNC6-M5 | 净化室用 | 0~150psi(0~1MPa) | 6 | 公制螺纹 | M5x0.8 | |
| 114354 | PJNC6-01 | 净化室用 | 0~150psi(0~1MPa) | 6 | 锥管螺纹 | R1/8 | |
| 114355 | PJNC6-02 | 净化室用 | 0~150psi(0~1MPa) | 6 | 锥管螺纹 | R1/4 | |
| 114356 | PJNC6-03 | 净化室用 | 0~150psi(0~1MPa) | 6 | 锥管螺纹 | R3/8 | |
| 114357 | PJNC8-01 | 净化室用 | 0~150psi(0~1MPa) | 8 | 锥管螺纹 | R1/8 | |
| 114358 | PJNC8-02 | 净化室用 | 0~150psi(0~1MPa) | 8 | 锥管螺纹 | R1/4 | |
| 114359 | PJNC8-03 | 净化室用 | 0~150psi(0~1MPa) | 8 | 锥管螺纹 | R3/8 | |
| 114360 | PJNC8-04 | 净化室用 | 0~150psi(0~1MPa) | 8 | 锥管螺纹 | R1/2 | |
| 114361 | PJNC10-02 | 净化室用 | 0~150psi(0~1MPa) | 10 | 锥管螺纹 | R1/4 | |
| 114362 | PJNC10-03 | 净化室用 | 0~150psi(0~1MPa) | 10 | 锥管螺纹 | R3/8 | |
| 114363 | PJNC10-04 | 净化室用 | 0~150psi(0~1MPa) | 10 | 锥管螺纹 | R1/2 | |
| 114364 | PJNC12-03 | 净化室用 | 0~150psi(0~1MPa) | 12 | 锥管螺纹 | R3/8 | |
| 114365 | PJNC12-04 | 净化室用 | 0~150psi(0~1MPa) | 12 | 锥管螺纹 | R1/2 | |
| 114366 | PJNC4-M5FC | 净化室用 | 0~150psi(0~1MPa) | 4 | 公制螺纹 | M5x0.8 | |
| 114367 | PJNC4-01FCS | 净化室用 | 0~150psi(0~1MPa) | 4 | 锥管螺纹 | R1/8 | |
| 114368 | PJNC6-M5FC | 净化室用 | 0~150psi(0~1MPa) | 6 | 公制螺纹 | M5x0.8 | |
| 114369 | PJNC6-01FCS | 净化室用 | 0~150psi(0~1MPa) | 6 | 锥管螺纹 | R1/8 | |
| 114370 | PJNC6-02FCS | 净化室用 | 0~150psi(0~1MPa) | 6 | 锥管螺纹 | R1/4 | |
