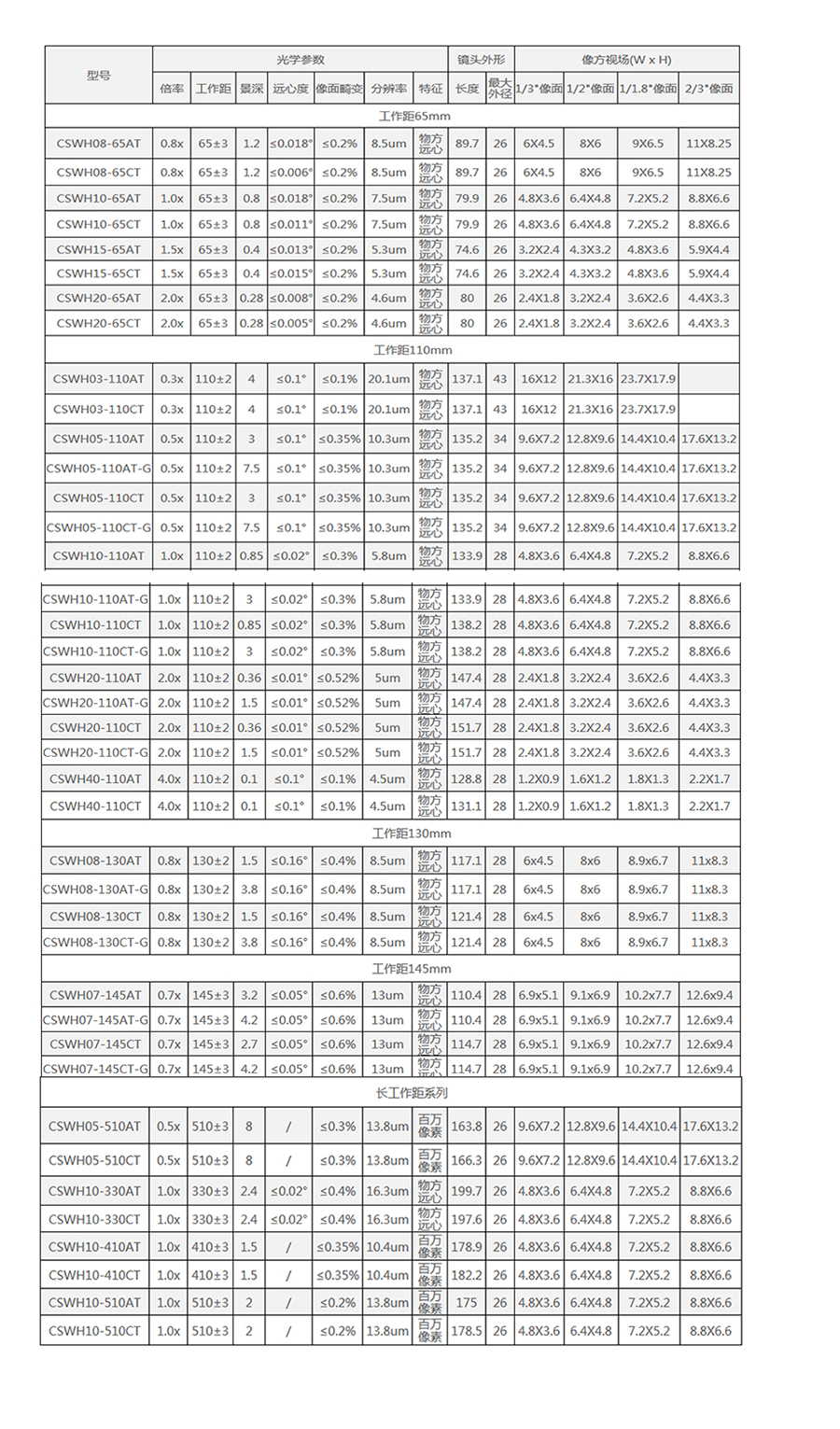

| 订货号 | 型号 | 一般 发货日 | 工作距离 | 视场角 |
|---|---|---|---|---|
| 214830 | CSWH08-65AT | 65mm±3mm | 1/3" 6x4.5 1/2" 8x6 1/1.8" 9x6.5 2/3" 11x8.25 | |
| 214831 | CSWH08-65CT | 65mm±3mm | 1/3" 6x4.5 1/2" 8x6 1/1.8" 9x6.5 2/3" 11x8.25 | |
| 214832 | CSWH10-65AT | 65mm±3mm | 1/3" 4.8x3.6 1/2" 6.4x4.8 1/1.8" 7.2x5.2 2/3" 8.8x6.6 | |
| 214833 | CSWH10-65CT | 65mm±3mm | 1/3" 4.8x3.6 1/2" 6.4x4.8 1/1.8" 7.2x5.2 2/3" 8.8x6.6 | |
| 214834 | CSWH15-65AT | 65mm±3mm | 1/3" 3.2x2.4 1/2" 4.3x3.2 1/1.8" 4.8x3.6 2/3" 5.9x4.4 | |
| 214835 | CSWH15-65CT | 65mm±3mm | 1/3" 3.2x2.4 1/2" 4.3x3.2 1/1.8" 4.8x3.6 2/3" 5.9x4.4 | |
| 214836 | CSWH20-65AT | 65mm±3mm | 1/3" 2.4x1.8 1/2" 3.2x2.4 1/1.8" 3.6x2.6 2/3" 4.4x3.3 | |
| 214837 | CSWH20-65CT | 65mm±3mm | 1/3" 2.4x1.8 1/2" 3.2x2.4 1/1.8" 3.6x2.6 2/3" 4.4x3.3 | |
| 214838 | CSWH03-110AT | 110mm±2mm | 1/3" 16x12 1/2" 21.3x16 1/1.8" 23.7x17.9 | |
| 214839 | CSWH03-110CT | 110mm±2mm | 1/3" 16x12 1/2" 21.3x16 1/1.8" 23.7x17.9 | |
| 214840 | CSWH05-110AT | 110mm±2mm | 1/3" 9.6x7.2 1/2" 12.8x9.6 1/1.8" 14.4x10.4 2/3" 17.6x13.2 | |
| 214841 | CSWH05-110AT-G | 110mm±2mm | 1/3" 9.6x7.2 1/2" 12.8x9.6 1/1.8" 14.4x10.4 2/3" 17.6x13.2 | |
| 214842 | CSWH05-110CT | 110mm±2mm | 1/3" 9.6x7.2 1/2" 12.8x9.6 1/1.8" 14.4x10.4 2/3" 17.6x13.2 | |
| 214843 | CSWH05-110CT-G | 110mm±2mm | 1/3" 9.6x7.2 1/2" 12.8x9.6 1/1.8" 14.4x10.4 2/3" 17.6x13.2 | |
| 214844 | CSWH10-110AT | 110mm±2mm | 1/3" 4.8x3.6 1/2" 6.8x4.8 1/1.8" 7.2x5.2 2/3" 8.8x5.6 | |
| 214845 | CSWH10-110AT-G | 110mm±2mm | 1/3" 4.8x3.6 1/2" 6.8x4.8 1/1.8" 7.2x5.2 2/3" 8.8x5.6 | |
| 214846 | CSWH10-110CT | 110mm±2mm | 1/3" 4.8x3.6 1/2" 6.8x4.8 1/1.8" 7.2x5.2 2/3" 8.8x5.6 | |
| 214847 | CSWH10-110CT-G | 110mm±2mm | 1/3" 4.8x3.6 1/2" 6.8x4.8 1/1.8" 7.2x5.2 2/3" 8.8x5.6 | |
| 214848 | CSWH20-110AT | 110mm±2mm | 1/3" 2.4x1.8 1/2" 3.2x2.4 1/1.8" 3.6x2.6 2/3" 4.4x3.3 | |
| 214849 | CSWH20-110AT-G | 110mm±2mm | 1/3" 2.4x1.8 1/2" 3.2x2.4 1/1.8" 3.6x2.6 2/3" 4.4x3.3 |
